Optical Surveying

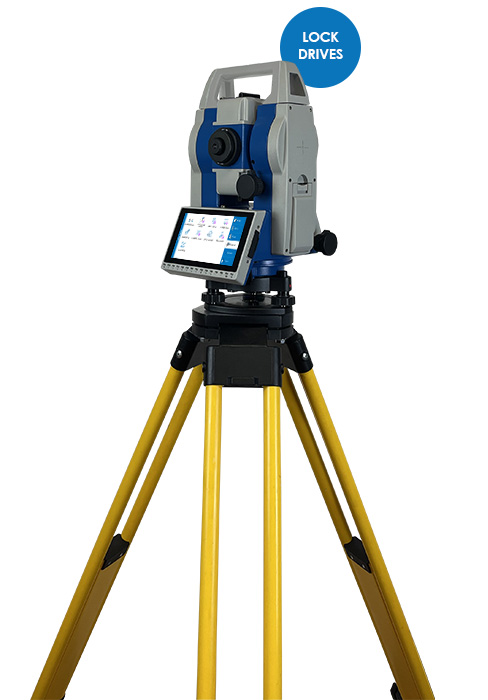

R60 Manual Total Station

The R60 is a device with a 5.5-inch touch screen and the Android operating system, which provides users with a smartphone-like experience in terms of ease of use and familiarity. With the Android OS, operators can easily access a wide range of features and functions, making their work more efficient and productive.

Additionally, the system’s versatility and customization options make it an ideal choice for those looking for a flexible and adaptable operating system. The R60 features Cube-a software, which allows for a new horizontal view and integration with GNSS surveys. The operator can use background maps and exchange functions between the TS and remote controller (GNSS) with Bluetooth, without the need for cables.

The R60 is available in two versions, one with an accuracy of 2″ and endless drives, and the other with an accuracy of 1″ and lock drives. With a prism, the instrument has an accuracy of 2 mm + 2 ppm, and it can measure reflectorless up to a range of 1000 m.

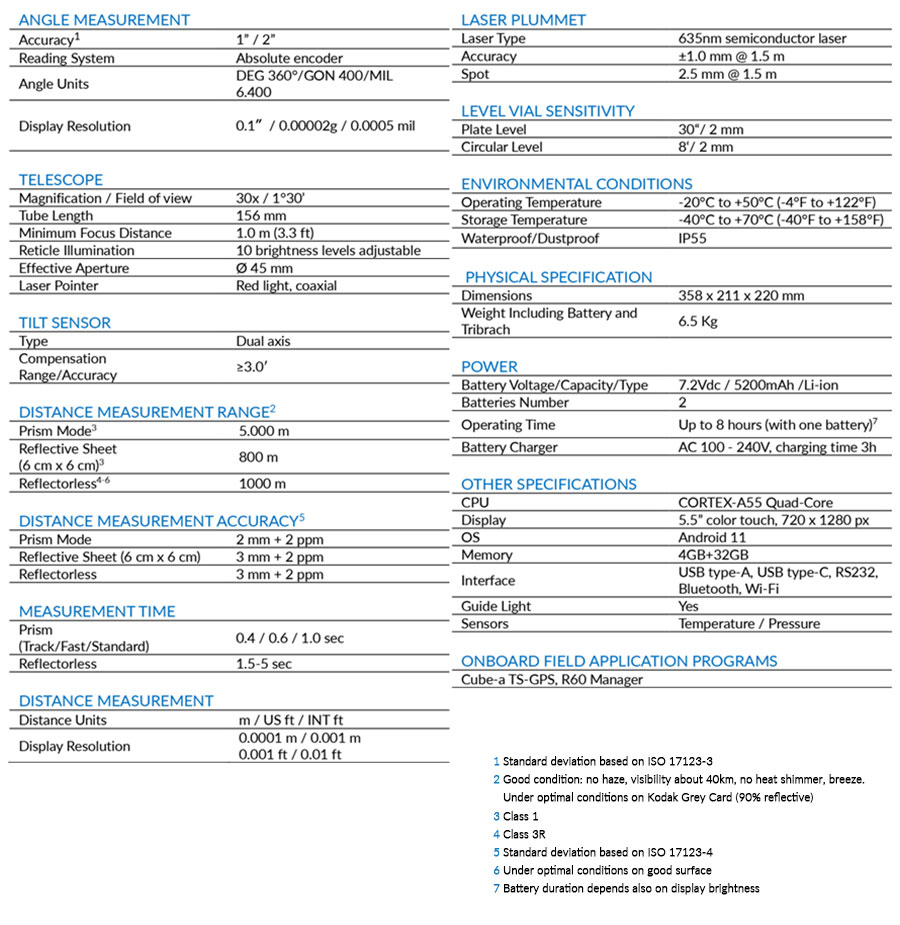

R60 DATA SHEET

R60 BROCHURE

Price:   Call or Email for a Quote!
 Questions? Contact Tyler Bristow | 757.647.7016 | tyler@centerlinemapping.com

R60 Total Station Features



ANDROID 11 OS
The Android 11 operating system provides a multitude of possibilities for operators, allowing for easy touch management of jobs and the ability to work with convenient background maps. This operating system enhances the user experience and provides a user-friendly interface.

UP TO 1000M REFLECTORLESS
The R60, available in both 1″ and 2″ versions, can obtain highly accurate long-range measurements. It can measure up to 1000 m without a prism and up to 5000 m with a prism, all with millimeter precision. This level of accuracy makes the R60 a reliable and efficient tool for a variety of applications, from construction and surveying to engineering and beyond.

GNSS CONNECTOR ON THE HANDLE
What sets the R60 apart is its GNSS connector; to perform a mixed survey using both a total station and GNSS, a connector has been placed on the handle to properly position the receiver on the vertical axis of the total station. This allows the operator to easily calculate the position coordinates and assign them as a reference to the total station.

TYPE-C PORT ON BATTERY
The Type-C USB port to charge the battery is a convenient feature that makes it easier than ever to keep your R60 powered up and ready to go
