GNSS Surveying





S990+ GNSS Receiver
High Performance with IMU

Stonex S990+ is a 1408-channel GNSS receiver featuring characteristics that improve survey performance in the field. The S990+ receiver is equipped with all major connectivity features: Bluetooth, Wi-Fi, UHF radio and 4G modem.

The internal 10.200mAh battery allows 9 hours of operation and can be recharged via a USB Type-C connector. The IMU system supports tilted measurement (TILT) with quick initialization, so the operator can get a fast and accurate surveys. The color touch display and Web UI are a quick and easy way to get complete control of the receiver.

The 1PPS port is an additional advantage available on this GNSS because it can be applied to scenarios that require precise timing to ensure that multiple facilities work together, or to scenarios that use the same parameters for integration of systems based on precise timing.

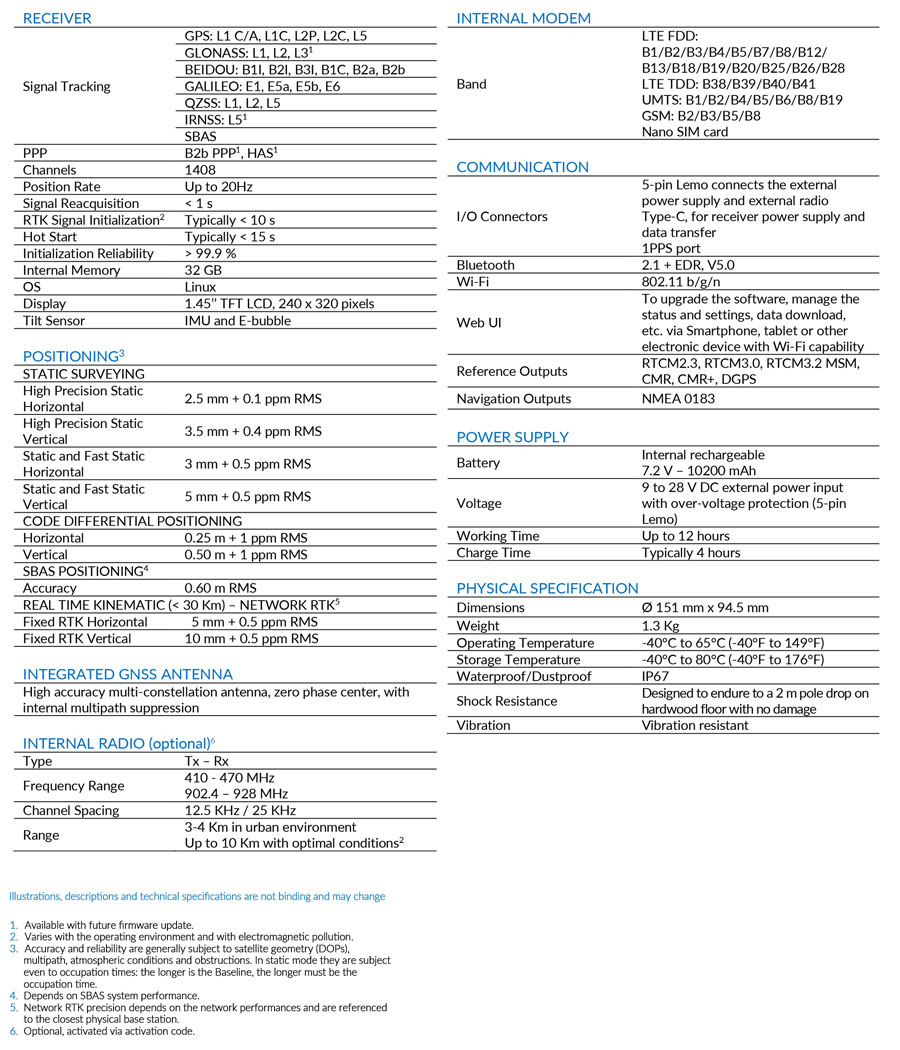

S990+ DATA SHEET

Price:   Call or Email for a Quote!
Questions? Contact Tyler Bristow | 757.647.7016 | tyler@centerlinemapping.com

S990+ GNSS Receiver Features



MULTI CONSTELLATION
Stonex S990+ with its 1408 channels provides an excellent on-board real-time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO and QZSS) are included, no additional cost.

IMU TECHNOLOGY
IMU technology is available on S990+, it allows fast initialization and accurate measurements with an inclination up to 60°.

DOUBLE FREQUENCY RADIO
S990+ has integrated UHF radio, 410-470MHz, allowing for powerful base and rover functionality.

4G MODEM
S990+ has an internal 4G modem that operates with all world signals, a fast internet connection is guaranteed.

COLOR TOUCH DISPLAY
S990+ comes with a convenient color touch display for easy management of the most important functions.
